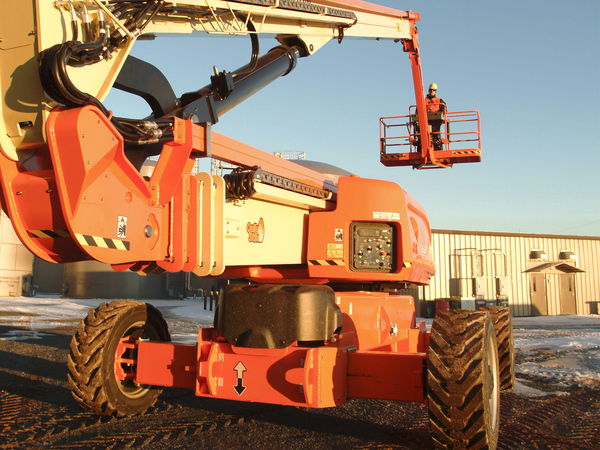

JLG 1250AJP
| Make | JLG |
| Model | 1250AJP |
| Type | Articulating Boom Lifts |
How can we help?
Description
Key Specs
- Platform Height: 125 ft / 38.1 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Horizontal Outreach: 63 ft 2 in. / 19.25 m
Key Features
- Ground to 120 ft in 95 seconds
- Strong 100,000-psi steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
- Equipped with a fuel-efficient Tier 4 engine
Specifications
- Auxiliary Power: 12 Volts DC
- Axle Oscillation: 8 in. / 0.2 m
- Capacity - Fuel Tank: 31 gal. / 117.35 L
- Capacity - Hydraulic Reservoir: 53 gal. / 200.63 L
- Drive Speed - 4WD: 3.3 mph / 5.23 km/h
- Engine Type - Diesel: DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
- Gradeability - 4WD: 45 %
- Ground Clearance: 1 ft / 0.3 m
- Horizontal Jib Rotation: 125 Degrees
- Horizontal Outreach: 63 ft 2 in. / 19.25 m
- Jib - Range of articulation: 130 Degrees
- Machine Height: 10 ft / 3.05 m
- Machine Length: 47 ft 6 in. / 14.48 m
- Machine Weight: 44000 lb / 19958.06 kg
- Machine Width: 8 ft 2 in. / 2.49 m
- Maximum Ground Bearing Pressure: 100 psi / 7 Kg/cm2
- Overall Width (Axles Extended): 12 ft 6 in. / 3.81 m
- Platform Capacity - Restricted: 1000 lb / 453.59 kg
- Platform Capacity - Unrestricted: 500 lb / 226.80 kg
- Platform Dimension B: 8 ft / 2.44 m
- Platform Height: 125 ft / 38.1 m
- Swing: 360 Degrees
- Swing Type: Continuous
- Tailswing: 3 ft / 0.91 m
- Tire Size: 445/500710 Foam-Filled
- Transport Length: 37 ft 7 in. / 11.46 m
- Turning Radius - Outside (axles extended): 19 ft 4 in. / 5.89 m
- Turning Radius - Outside (axles retracted): 22 ft 6 in. / 6.86 m
- Up and Over Height: 60 ft 6 in. / 18.44 m
Features
- Ground to 120 ft in 95 seconds
- Strong 100,000-psi steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
- Equipped with a fuel-efficient Tier 4 engine
