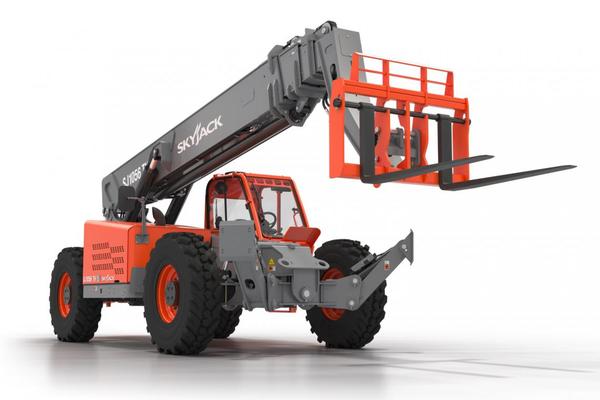

Skyjack SJ1056 TH
| Make | Skyjack |
| Model | SJ1056 TH |
| Type | Skyjack Telehandlers |
How can we help?
Description
Easily Serviceable
Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization. With a variety of proprietary features, Skyjack’s TH series offer the rental industry’s best life cycle value.
Models
Overall Specifications
| SJ1056 TH | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19” (48.3 cm) | |
| Turning Radius (Outside) | 153” (3.89 m) | |
| Fuel Tank | 35 gal. (132 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |
| Maximum Lift Capacity | 10,000 lbs (4,535 kg) | |
| Maximum Lift Height | 56’ 3” (17.14 m) | |
| Maximum Forward Reach | 42’ 6” (12.85 m) | |
| Rated Lift Capacity @ Maximum Height | 4,000 lbs (1,814 kg) | |
| Rated Lift Capacity @ Maximum Reach | 400 lbs (181 kg) | |
| Rated Lift Capacity @ Maximum Height (on outriggers) | 6,000 lbs (2,722 kg) | |
| Rated Lift Capacity @ Maximum Reach (on outriggers) | 3,000 lbs (1,361 kg) | |
| O/A Length - Less Forks | 22’ 2” (6.75 m) | |
| Overall Height - Stowed | 8’ 1” (2.47 m) | |
| Operating Weight | 33,336 lbs (15,121 kg) | |
| Engine | 74hp / 287 lb-ft Deutz TCD 3.6L T4F | |
| Max Travel Speed - Forward | 15 mph (24 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 14 x 24 16PR Grip Lug | |
| Drawbar Pull | 20,000 lbs |
Features
- ROTATING BEACON
- CLOSED CAB
- PREMIUM JOYSTICK
- ATTACHMENTS
- RESERVE BREAK SYSTEM
- 107HP / 320 LB-FT DEUTZ TCD 3.6L T4F (INCLUDES DEF/SCR SYSTEM)
- CARRIAGE OPTIONS
- BACKUP SENSOR
- PINTLE HITCH (IN LIEU OF STANDARD HITCH PIN)
- WORK LIGHT PACKAGE
- POSITIVE AIR SHUT-OFF VALVE
- FORK OPTIONS
- AIR CONDITIONING (CLOSED CAB ONLY)
- BOOM LIGHT PACKAGE
- BACKUP SENSOR AND CAMERA
- SERVICE CONVENIENCE PACKAGE
- NON DESTRUCTIVE TESTING
- ELEVATE
- ROAD LIGHT PACKAGE
- COLD WEATHER PACKAGE
- EXTENDED WARRANTIES
- FOUR WHEEL FENDERS
