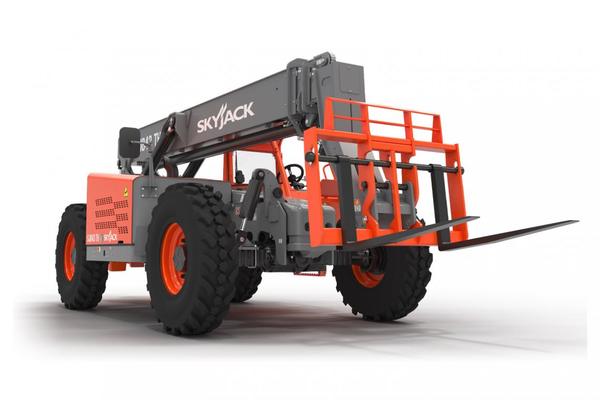

Skyjack SJ843 TH
![[THYMELEAF ERROR] #strings.defaultString(image.file.altText, Make.title) returns: Exception evaluating OGNL expression: "#strings.defaultString(image.file.altText, Make.title)"](/files/download/image/600x0/fixed_width/776d8c18-6940-4dcd-b611-3767af951abe.jpeg)
![[THYMELEAF ERROR] #strings.defaultString(image.file.altText, Make.title) returns: Exception evaluating OGNL expression: "#strings.defaultString(image.file.altText, Make.title)"](/files/download/image/600x0/fixed_width/f872689f-a1f7-46bf-b7ae-f09e5faff4d3.jpeg)
![[THYMELEAF ERROR] #strings.defaultString(image.file.altText, Make.title) returns: Exception evaluating OGNL expression: "#strings.defaultString(image.file.altText, Make.title)"](/files/download/image/600x0/fixed_width/6843e157-b081-4dd9-b3fb-1df64c51e5b3.jpeg)
| Make | Skyjack |
| Model | SJ843 TH |
| Type | Skyjack Telehandlers |
How can we help?
Description
Easily Serviceable
Skyjack telehandlers extend our principle of simple reliability into material handling equipment. Our TH series is designed with all major service points easily accessible, limiting downtime and increasing our customers’ utilization. With a variety of proprietary features, Skyjack’s TH series offer the rental industry’s best life cycle value.
Models
Overall Specifications
| SJ843 TH | ||
|---|---|---|
| Overall Width | 8’ 5” (2.56 m) | |
| Ground Clearance | 19" (48.3 cm) | |
| Turning Radius (Inside) | 147” (3.73 m) | |
| Fuel Tank | 35.7 gal. (142 L) | |
| Hydraulic Reservoir | 43.85 gal. (166 L) | |
| Maximum Lift Capacity | 8,000 lbs (3,629 kg) | |
| Maximum Lift Height | 43’ 4” (13.21 m) | |
| Maximum Forward Reach | 28’ 7” (8.71 m) | |
| Rated Lift Capacity @ Maximum Height | 6,000 lbs (2,722 kg) | |
| Rated Lift Capacity @ Maximum Reach | 1,900 lbs (862 kg) | |
| O/A Length - Less Forks | 19’ 6” (5.94 m) | |
| Overall Height - Stowed | 7’ 11” (2.41 m) | |
| Operating Weight | 23,006 lbs (10,435 kg) | |
| Engine | 74hp / 221 lb-ft Deutz TCD2.9L T4F | |
| Max Travel Speed - Forward | 17mph (27 km/h) | |
| Transmission | Dana Powershift, 3 Speeds F/R | |
| Axles | Dana | |
| Steering | 3 mode (Front Wheel, 4 Wheel, Crab) | |
| Tires | Foam Filled 13 x 24 16PR Grip Lug | |
| Drawbar Pull | 17,750 lbs |
Features
- AIR CONDITIONING (CLOSED CAB ONLY)
- ATTACHMENTS
- PINTLE HITCH (IN LIEU OF STANDARD HITCH PIN)
- COLD WEATHER PACKAGE
- PREMIUM JOYSTICK
- BACKUP SENSOR AND CAMERA
- FOUR WHEEL FENDERS
- FORK OPTIONS
- NON DESTRUCTIVE TESTING
- EXTENDED WARRANTIES
- BOOM LIGHT PACKAGE
- ROTATING BEACON
- RESERVE BREAK SYSTEM
- CARRIAGE OPTIONS
- POSITIVE AIR SHUT-OFF VALVE
- ROAD LIGHT PACKAGE
- ELEVATE
- CLOSED CAB
- BACKUP SENSOR
- WORK LIGHT PACKAGE
- SERVICE CONVENIENCE PACKAGE
