Make Toyota
Model Electric Pneumatic Forklift
Type Electric Forklifts

How can we help?


Description

Overview

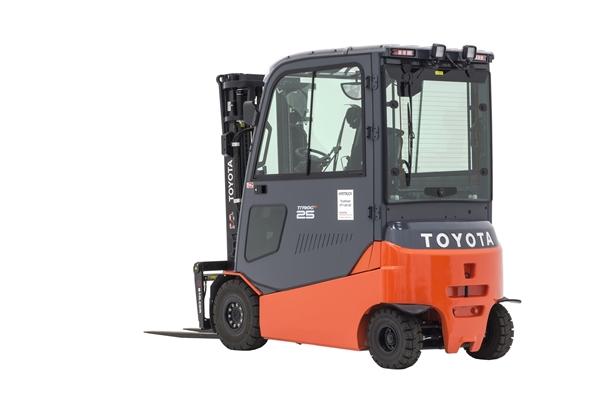

Want to maintain an all electric fleet, but need a rugged, outdoor solution? Look no further than Toyota’s Electric Pneumatic Forklift. Powerful and rugged enough to perform similar to internal combustion counterparts, but running off a battery, Toyota’s Electric Pneumatic Forklift maintains clean air and low maintenance, but supports powerful, outdoor, traditionally IC applications.

Outdoor Electric Forklift Solution

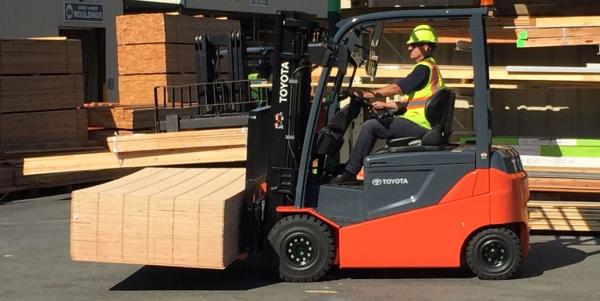

The Toyota Electric Pneumatic is a green, outdoor forklift solution. Instead of supplementing your indoor electric fleet with IC counterparts for your outdoor application, the Electric Pneumatic provides an all-electric option for both indoor and outdoor use.

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or another motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Electric Pneumatic Forklift operating at peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Electric Pneumatic Forklift can be an asset for your company for years to come.

Models

Electric Pneumatic Forklift
Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
05-8FBM20T 4,000 11.8 96 26 95.4
05-8FBM25T 5,000 11.8 91 24 100.7
05-8FBMK25T 5,000 11.8 91 25 95.4
05-8FBM30T 6,000 11.8 75 22 101.5
05-8FBMK30T 6,000 11.8 75 21 97.3
05-8FBM35T 7,000 11.8 69 19 102.6
8FBM40T 8,000 11 68.9 15 120.5
8FBM45T 9,000 11 68.9 14 121.1
8FBM50T 11,000 11 65 13 126.5

Specifications

  • Length to Forkface: 89.9 - 120.9 in
  • Load Capacity: 4,000 - 11,000 lb. Load Capacity
  • Overall Width: 47 - 56.7 in
  • Overhead Guard Height: 87.2 - 92.9 in
  • Travel Speed Full Load: 11 - 11.8 mph Travel Speed Full Load
  • Voltage: 80 Voltage

Features

  • AC Controller with MOSFET Design
  • MPH Travel Speed: 11.8
  • Digital multifunction display
  • FPM Lift Speed: 96
  • Overhead Guard
  • Emissions: 0
  • Heavy-duty non-slip floor mat
  • ORS Non-Suspension vinyl seat
  • Electric Horn
  • Operator Presence Sensing System (OPSS)
  • UL-E conformity
  • AC Hydraulic motor (no brushes or commutator)
  • Double-Action Parking Brake
  • 3-way hydraulic control valve
  • Regenerative Braking
  • Easy access no-tools floorboard
  • 80 Volt electrical System
  • AC drive motor (no brushes or commutator)
  • Transistor controlled AC lift & drive Motors
  • System of Active Stability (SAS)
  • Can-bus controller wiring
  • Battery compartment hood assist
  • Memory tilt steering column
  • Planned Maintenance Indicator
  • Retractable Seat Belt (Non-Clinching)
